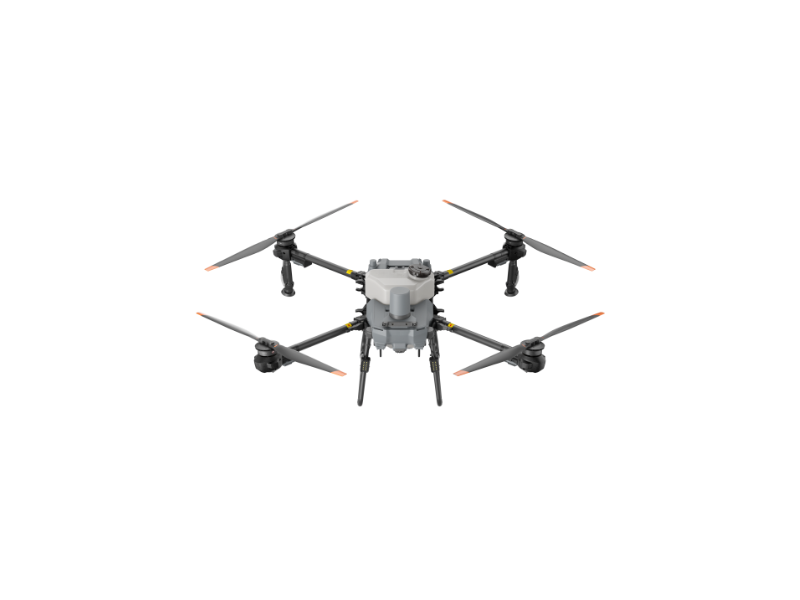

| Aircraft – Basic Information |
| Weight |
26 kg (spraying without battery)
33 kg (spraying with battery) |
| Max Takeoff Weight |
Spraying: 53 kg
Spreading: 60 kg |
| Max Diagonal Wheelbase |
1970 mm |
| Dimensions |
Spraying
2650×2700×820 mm (arms & propellers unfolded)
1520×1580×820 mm (arms unfolded, propellers folded)
1120×700×850 mm (fully folded)Spreading
2650×2700×850 mm (arms & propellers unfolded)
1520×1580×850 mm (arms unfolded, propellers folded)
1120×700×850 mm (fully folded) |
| Hovering Accuracy (GNSS) |
RTK enabled: ±10 cm (H/V)
RTK disabled: ±60 cm (H), ±30 cm (V) |
| Max Flight Radius |
2000 m |
| Operating Temperature |
0° to 40° C |
| Max Wind Resistance |
Level 3 (<6 m/s) |
| Propulsion System – Motors |
| Stator Size |
100 × 28 mm |
| KV Rating |
59 RPM/V |
| Propulsion System – Propellers |
| Material |
Nylon Carbon Fiber |
| Dimensions |
50 inches |
| Quantity |
4 |
| Spraying System – Spray Tank |
| Material |
Plastic (HDPE) |
| Volume |
20 L |
| Operating Payload |
20 kg |
| Spraying System – Sprinklers |
| Model |
LX07550SX |
| Quantity |
Standard Configuration: 2 |
| Nozzle Distance |
1420 mm (Rear Nozzles) |
| Droplet Size |
50–500 μm |
| Effective Spray Width |
4–7 m (at 3 m height above crops) |
| Spraying System – Delivery Pumps |
| Pump Type |
Impeller Pump (Magnetic Drive) |
| Quantity |
2 |
| Max Flow Rate |
16 L/min (2 nozzles)
24 L/min (4 nozzles) |
| Safety System 3.0 |
| Radar Frequency |
24.05–24.25 GHz |
| Detection Range |
≤ 60 m |
| Safe Distance |
2.5 m |
| Remote Controller |
| Model |
TKPL 2 |
| Display |
7-inch LCD Touchscreen
1920×1200, 1400 cd/m² |
| DB800 Intelligent Flight Battery |
| Capacity |
15500 mAh |
| Voltage |
52.22 V |
| Weight |
≈ 6.6 kg |
| D6000i Multifunctional Inverter Generator |
| Battery Charging Time |
9–12 minutes (DB800 battery) |
| Fuel Tank Capacity |
20 L |
| Starting Method |
One-Button Start Switch |
| Max Engine Power |
6 kW |
| Fuel Type |
Unleaded gasoline (RON ≥91, AKI ≥87, alcohol <10%)
Brazil: RON ≥91, alcohol 27% |
| Reference Fuel Consumption |
600 ml/kWh |
| Engine Oil Capacity |
0.8 L |
| Engine Oil Model |
SJ10W-40 |
| C8000 Intelligent Power Supply |
| Dimensions |
300 × 280 × 230 mm |
| Weight |
11.5 kg |
| Input |
100–240 Vac |
| Output |
Voltage: 59.92 V
Current: 100 A (max) |
| Charging Time |
9–12 minutes (DB800 battery) |
| Protection Functions |
Over-voltage, Over-charge, Under-voltage, Over-temperature |
| Charging Safety |
AC wire protection, power wire protection, charge connector protection |
| Annotations:
[1] Load weight is intelligently recommended by DJI Agriculture App based on aircraft status and environment.
[2] Effective spray width depends on actual working conditions.
[3] Effective spreading width measured at 3 m altitude; varies by material and environment.
[4] Safety system detection range varies with light, rain, fog, and obstacle characteristics.
[5] Obstacle avoidance is effective up to 10 m/s; linear obstacles must be manually marked.
Note: Downward perception assists terrain following only; moving objects cannot be actively avoided.
[6] Charging time measured at sea level, 15–40°C, battery charge from 30%–95%. |
